AEMC DL913 Three-Channel AC Current Data Logger,
Category：
▶ AEMC
keyWord：
AEMC DL913 Three-Channel AC Current Data Logger,
Describe:
AEMC DL913
Contact us
Description
http://www.jinstartech.com/
General Attributes:
AEMC DL913 very good price
Data Logger Model DL913 (3-channel, TRMS, MiniFlex 300/3000A, WiFi, DataView Software) {Replacement for Cat #2126.37}
- 3-channel AC current data logger with 3 integral 24-in flexible current sensors
- Current measurements from 500 mA up to 3600 A
- Built-in web server for remote monitoring
- Wi-Fi Direct, Wi-Fi via Router, and USB to PC communications

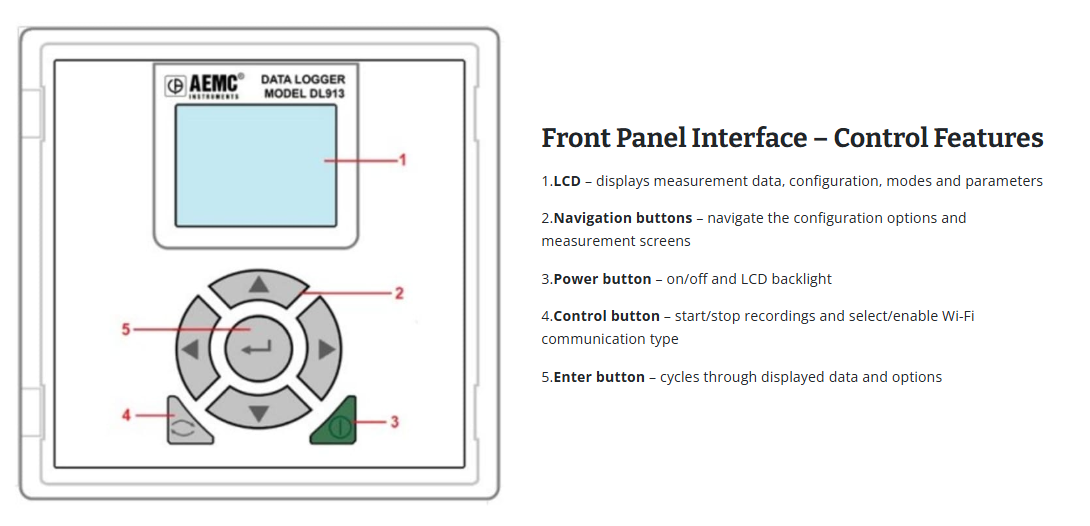

- LCD screen displays real-time measurements and parameters
- Storage rate: 1 per second in normal recording mode, 4 per aggregation period in extended recording mode
- Frequency measurements
- Battery and/or USB powered
- Lightweight, compact and flame-retardant - waterproof IP67 rated (with USB cap on and cover closed)
- Safety rating: 600 V CAT IV, 1000 V CAT III, complies with IEC 61010-2-032
Description
- 3-channel AC current data logger with 3 integral 24-in flexible current sensors
- Current measurements from 500 mA up to 3600 A
- Built-in web server for remote monitoring
- Wi-Fi Direct, Wi-Fi via Router, and USB to PC communication
- LCD screen displays real-time measurements and parameters
Three-Channel AC Current Data Logger, 300/3000A, TRMS, Wi-Fi, DataView Software
The AEMC DL913 is a 3-channel AC current data logger with three integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around a 7.64-inch conductor. The housing and the current sensors are water resistant rated to IP67 (with the USB cap on and cover closed). The rugged, easy-to-use data logger can be used both indoors and outdoors. The unit is powered by two rechargeable NiMH batteries or can be externally powered through the USB port.
The DL913 has two measurement ranges of up to 300 and 3000 Amps. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView software or setup can be done using the keypad and LCD screen on the instrument. Measurements are stored in internal nonvolatile memory (8GB) with data storage rates as fast as once per second. The recorded data can be transferred to a computer using Wi-Fi or a USB connection. The data can then be analyzed, and reports can be generated using the included DataView software.
Applications
- Single/split-phase and 3-phase monitoring
- Intermittent problem detection
- Machine load monitoring / load profiling
- Fault current detection
Tech Specs
Dataloggers / Data Acquisition/Current Dataloggers Template |
|
|---|---|
| Battery Life | 4 DAYS (96.00 HR) |
| Max Current | 3600 A |
| Min Current | 500 mA (0.5 A) |
| Power Source | Battery, USB Powered |
| # Inputs/Channels | 3 |
| SAMPLE RATE/Intervals | 1 per second (normal mode) |
| TRMS | Yes |
| Accuracy | 300 A range: (0.50 to 99.99) A ±(1 %r + 10 D) (90.0 to 360.0) A ±(1 %r + 4 D) 3000 A range: (4.00 to 99.99) A ±(1 %r + 10 D) (90.0 to 999.9) A ±(1 %r + 5 D) (0.900 to 3.600) kA ±(1 %r + 4 D) |
| LCD Screen | Yes |
| Software Included | Yes |
| Type | AC |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Warranty Details | The instrument is warrantied to the owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused, or if the defect is related to service not performed by AEMC Instruments. |
| Safety Approval | CE |
| Storage | Internal Memory |
| IP Rating | IP67 |
| Product Weight | 2.2 LBS |
| Product Height | 3.57 IN |
| Product Length | 5.9 IN |
| Product Width | 5.9 IN |
| Battery Type | NimH |
