General Attributes:

AEMC 6550 very good price

Megohmmeter Model 6550 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, 10kV, Ramp, StepV, Variable, Auto DAR/PI/DD, USB, w/DataView Software)

• Live measurement of the voltage to warn the operator of potential unsafe conditions
• Programmable thresholds to trigger audible
• Timed measurement duration checks
• Detection and measurement of input voltage, frequency, and current prior to running a test
• Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point
• Digital filtering of insulation measurements
• Fuse protection with display indication of defective fuse condition
• Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000VDC
• Ramp voltage measurements with a ramp from 40 to 1100V
• Step voltage measurements with steps from 40 to 10,000V

Description

• Live measurement of the voltage to warn the operator of potential unsafe conditions
• Programmable thresholds to trigger audible
• Timed measurement duration checks
• Detection and measurement of input voltage, frequency, and current prior to running a test
• Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point

Megohmmeter, 10kV

Megohmmeter Model 6550

The Megohmmeter Model 6550 is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 10,000V graphical insulation tester. The True Megohmmeter® Model 6550 is packaged in a rugged case that is IP65 when closed. Test results and configuration information are displayed on a graphical LCD screen, and are exportable via DataView® (provided). This megohmmeter can operate on battery or AC power.

The Model 6550 also offers the ability to program up to three step voltage profiles (from 40 to 10,000V), each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000 and 10,000V.

Applications

• Acceptance testing and preventive maintenance
• Test motors, pumps, valves, cables, switchgear and electrical wiring installations
• Continuity checks
• High resistance or absorption tests
• Spot reading tests
• Timed resistance measurements
• Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
• Multi-layer insulation testing (DD)
• Test old or water damaged installations over long time periods
• Motor insulation resistance measurements

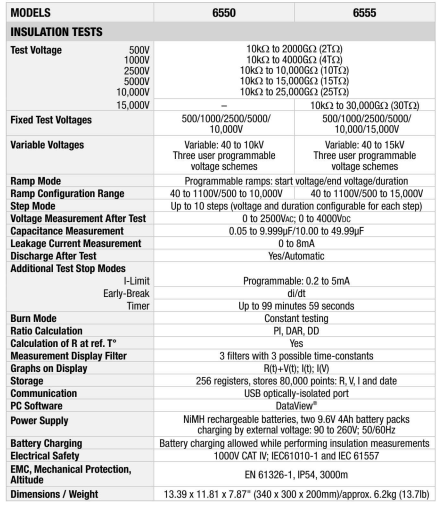

Specifications
