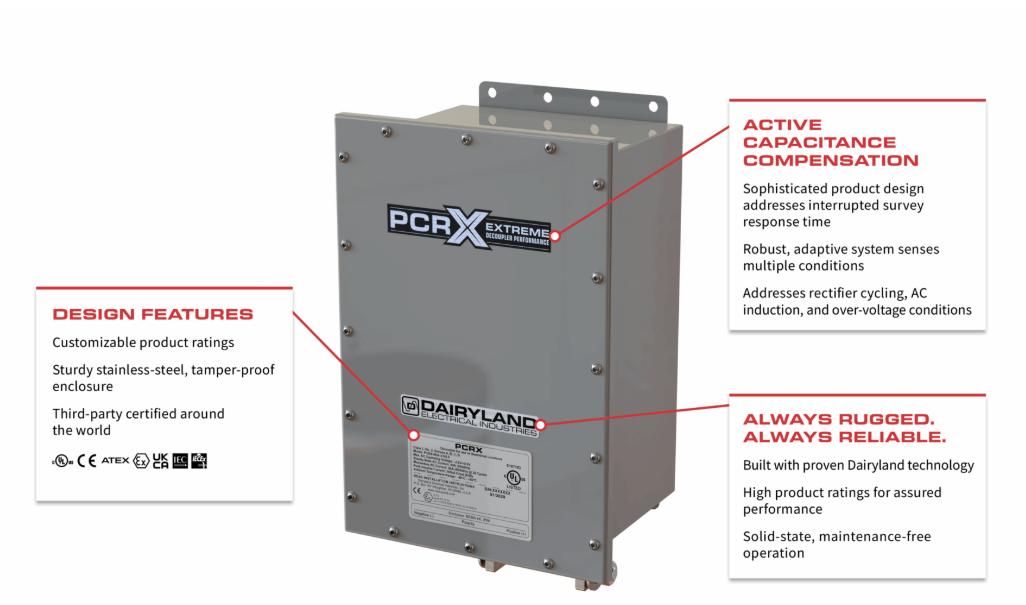

Dairyland PCRX very good price

Product Description

Building on Dairyland’s proven history of industry-leading product lines, the PCRX represents the next technological leap forward in decoupling technology. Using sophisticated design techniques that represent the work of numerous leading experts around the world, the PCRX’s active capacitance compensation renders it virtually invisible to interrupted survey testing.

Like our other decouplers, the PCRX is a solid-state, maintenance-free device designed to simultaneously provide DC decoupling and AC continuity/grounding when used with cathodically protected structures. Commonly used to decouple electric equipment from grounding systems, for AC mitigation projects, or other isolation and grounding applications, the PCRX is the most sophisticated decoupler in the world.

Technical Specs

AC Fault Current (AMPERES-RMS) 50/60Hz

5.0kA at 30 cycles
10kA at 30 cycles
15kA at 30 cycles

AC STEADY-STATE CURRENT

45A

ENVIRONMENTAL RATING

NEMA 4X (standard)
Ambient Temperature Range:
-40C to +50C (-40 to +122F)
IP66

Threshold Voltage

-4.5/+3.5
-5.5/+2.5

LIGHTNING SURGE CURRENT

100kA crest (8 x 20 µs waveform)

HAZARDOUS (CLASSIFIED) AREAS

ANSI/ISA: Class I, Division 2, Groups A, B, C, D
ATEX: Zone 2, Group IIC
IECEx: Zone 2, Group IIC
UKEx: Zone 2, Group IIC
