General Attributes:

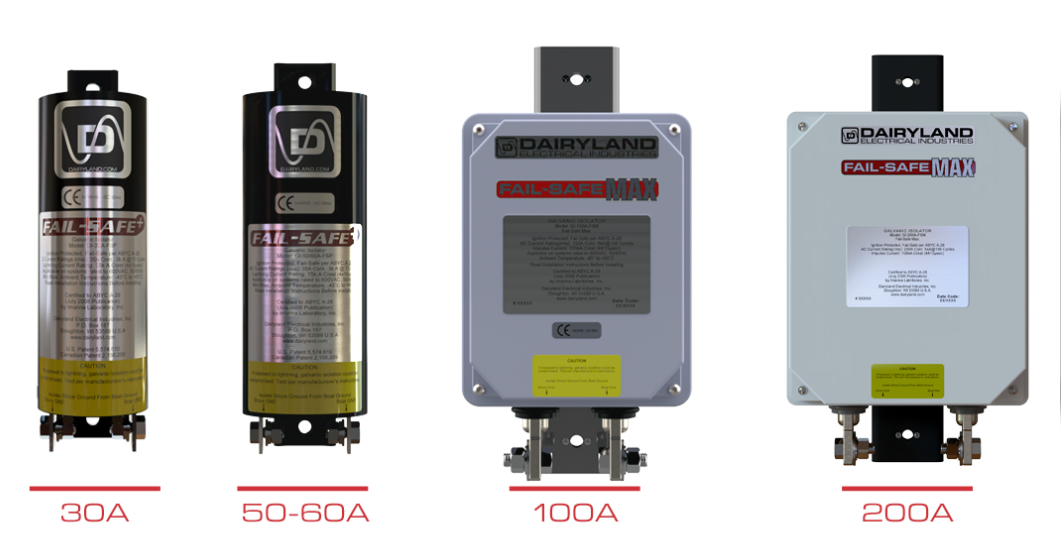

Dairyland Galvanic Isolators very good price

Product Description

Dairyland Galvanic Isolators are fail-safe, solid-state DC isolation/ AC coupling devices that will prevent galvanic corrosion from occurring on your vessel. Our proven devices feature ratings and characteristics that significantly surpass all marine industry requirements ensuring long-life and lasting performance. Proven fail-safe construction assures that the galvanic isolator never compromises the integrity of the grounding conductor, even in the unlikely case of the product failing.

Technical Specs

Shore Power Size

30A
50/60A (Also Suitable for Dual 30A Service)
100A (Also Suitable for Dual 50A Service)
200A

AC Fault Current Ratings

3kA for 13 Cycles
5kA for 10 cycles
5kA for 198 cycles
5kA for 198 cycles

Environmental Rating

30A and 50/60A Models: IP68
100A and 200A Models: NEMA 4X

Peak Voltage

All Models: +/- 1.0V

Lightning Surge Current

30A Models: 75kA Peak (4 x 10µs waveform)
All Other Models: 100kA Peak (4 x 10µs waveform)

Certifications

Imanna Labs:
Certified to July 2008 changes to ABYC A-28 (Effective date 2009)
Certified to fail-safe criteria Ignition Protected CE Marine - ISO 8846
