General Attributes:

CheckLine TW-Series very good price

TW-SeriesManual Torque Multiplier

The TW-Series manual torque multiplier is ideal for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping, and maintenance industries.

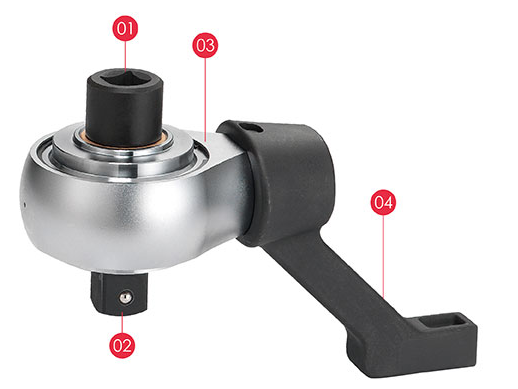

1. Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
2. Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
3. Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.
   (a)Planetary gear carrier device brings high transmission efficiency and load capacity.
   (b)All gears rotate on needle roller bearings throughout the operating process.
4. Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.

Features

• Supplied with 2 reaction bars
• Multiplication accuracy ±5%.
• Precision tightening and loosening of all heavy duty fastening connections
• For operation in combination with a torque wrench
• Torque Multiplication Ratio - low energy input with high torque output
• Compact design allows for operation in space-restricted applications
• CLTW-428 Models feature an anti-backlash mechanism for safety
