Moore Industries PWT AC Watt Transducer very good price

Description

Moore Industries’ AC Power Transducers continuously track the amount of power being consumed by an electric device or a system.

Available models accept an AC input from a “load” device such as a motor, pump or heater. They provide a proportional milliamp output for determining equipment power use and operating efficiency. They can also be used to trip automatic power control equipment to initiate energy conservation measures.

Moore Industries’ AC power transducers are available in 1, 1-1/2, 2, 2-1/2, and 3 element versions. They may be either self- or externally-powered.

Easy Installation and Maintenance–All Moore Industries power transducers are enclosed in rugged and rustproof extruded aluminum housings that provide superior heat dissipation. Keyhole cutout screw holes allow installation and removal simply by loosening the mounting screws.

All circuitry is attached to the unit’s front panel to allow quick access to the circuitry without removing the entire housing. The circuit boards slide smoothly out of the housing on PC board guides that run the entire length inside the unit’s housing.

Unique keyhole-slotted mounting flanges allow these power monitors to be removed and reinstalled by loosening the mounting screws.

Features

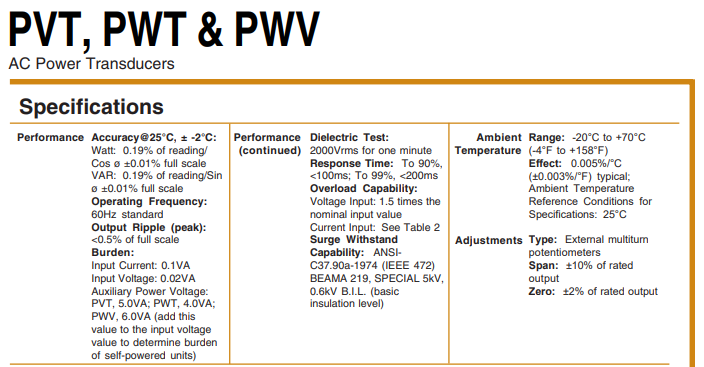

• High accuracy. ±0.2% of reading accuracy makes the PVT, PWT and PWV ideal for applications where precision is demanded.

• Measure true RMS power. Moore Industries AC power transducers measure the true RMS (Root Mean Square) of voltage and current for exceptionally accurate computation of power in watts and VARs.

• No Zero adjustment required. The zero adjustment never needs readjustment from its initial factory setting.

• Complete isolation. Full input/output isolation eliminates signal inaccuracies caused by ground loops.

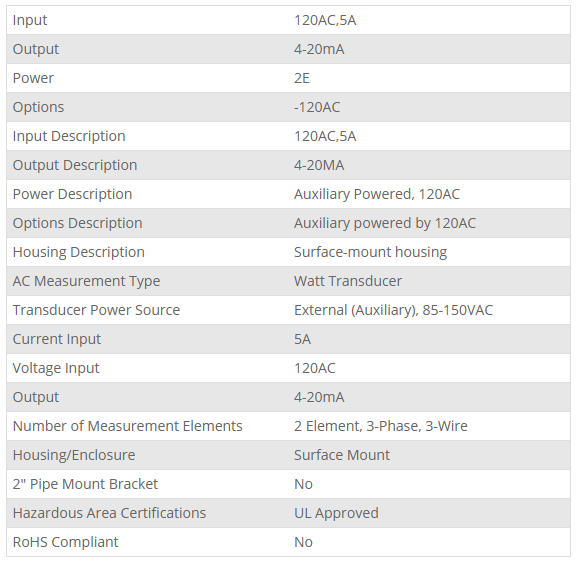

Product Details
