Moore Industries FDY PC-Programmable Frequency-to-DC Transmitter very good price

Description

The FDY PC-Programmable Frequency-to-DC Transmitter with Display monitors frequency, period, high or low pulse width, and contact closure signals. It converts the input signal to a proportional, input-tooutput isolated 4-20mA output ready for direct interface with a readout instrument, recorder, PLC, DCS, SCADA system or other readout instrument.

The 2-wire (loop-powered) FDY is ideal for use in a wide range of process and factory automation monitoring applications:

• Turbine Tachometer Generators

• Turbine Flow Meters

• Magnetic Pickups

• Dry Contact Closures

• Variable Frequency Drives

• Rotating Equipment

• Pulse and Frequency Output Transducers

• Motor and Conveyor Speed

The FDY installs quickly and easily in harsh conditions using our protective field-mount enclosures, or on a surface, DIN-rail or relay track.

Features

• Exceptional accuracy and long-term stability. Typical accuracy is ±0.025% of span with up to 5 years between scheduled calibrations.

• Sets up in minutes with PC software. You can choose, and then view to confirm, all applicationspecific operating parameters.

• Versatile input choices. Measures frequency ranges between an amazingly low 0.005Hz up to 25kHz; periods from 40microseconds to 200sec; and pulse widths from 0.2msec to 200 seconds.

• User-configurable display. A 5-digit LCD shows the process variable in selectable engineering units.

• Input-to-output isolated and RFI/EMI protected. Resistant to unpredictable ground loops and the harmful effects of plant and equipment “noise”.

• Programmable moving average filter. Minimizes measurement instability caused by the effects of bent turbine blades and other frequency variations.

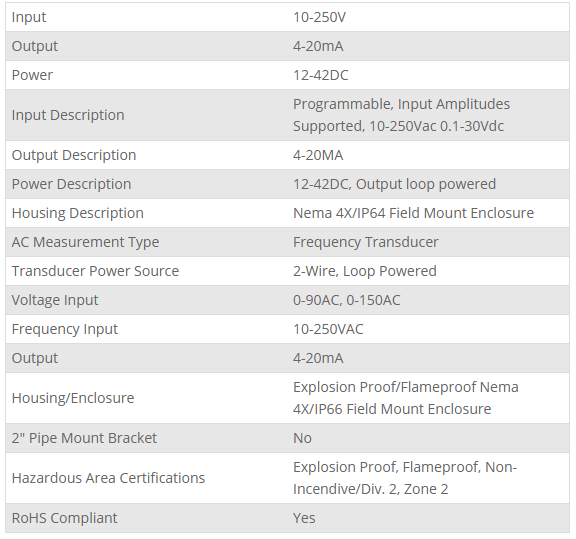

Product Details
