Robotic/Automatic Tool Changers QC-7 Tool,9120-007DT-0-0

Category：

▶ ATI-IA

keyWord：

Describe:

9120-007DT-0-0

Description

http://www.jinstartech.com/

General Attributes:

ATI-IA Robotic/Automatic Tool Changers very good price

Product Description and Features

Standard Quick Change Tool Changers - This series of Tool Changers is built around a 'round' body with integrated pneumatic ports and our patented high-strength locking mechanism. A variety of electrical modules are available for use with the Standard Series.

Heavy Automation Quick Change Tool Changers - The Heavy Automation Series of Tool Changers is built around a 'square' body and uses our patented high-strength locking mechanism. This series of Tool Changers is more modular in design, with a wide variety of electrical, pneumatic, fluid, and high-power modules available. Heavy Automation Tool Changers are commonly used in heavy material handling and primary and secondary welding applications.

For applications that do not require a locking mechanism, ATI Utility Couplers may be an option.

If you are needing to change tools by hand, ATI Manual Tool Changers may be a cost-effective solution.

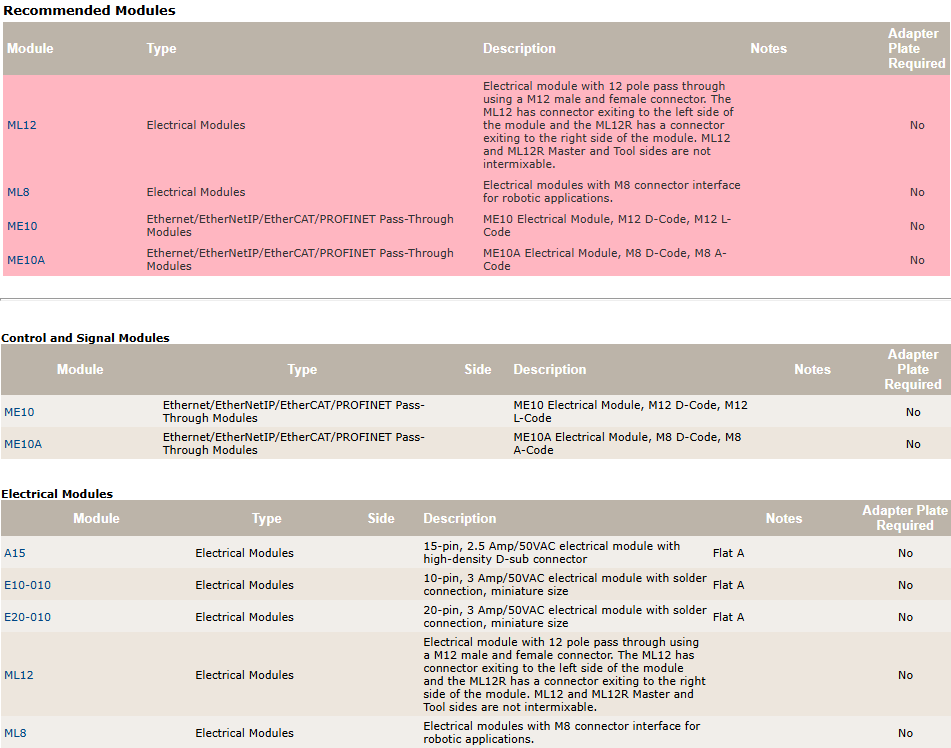

Both options can utilize a variety of ATI Tool Changer Utility Modules.

QC-7,PN#9120-007DT-0-0

Product Advantages

Compact, lightweight automatic tool changer for 16 kg payloads.
Patented Fail-Safe locking mechanism for a secure connection between Master and Tool.
Direct mounting to ISO 9409-1-31.5-4-M5 robot wrists to minimize stack height.
Integrated Lock/Unlock sensing to communicate status. No SIP required.

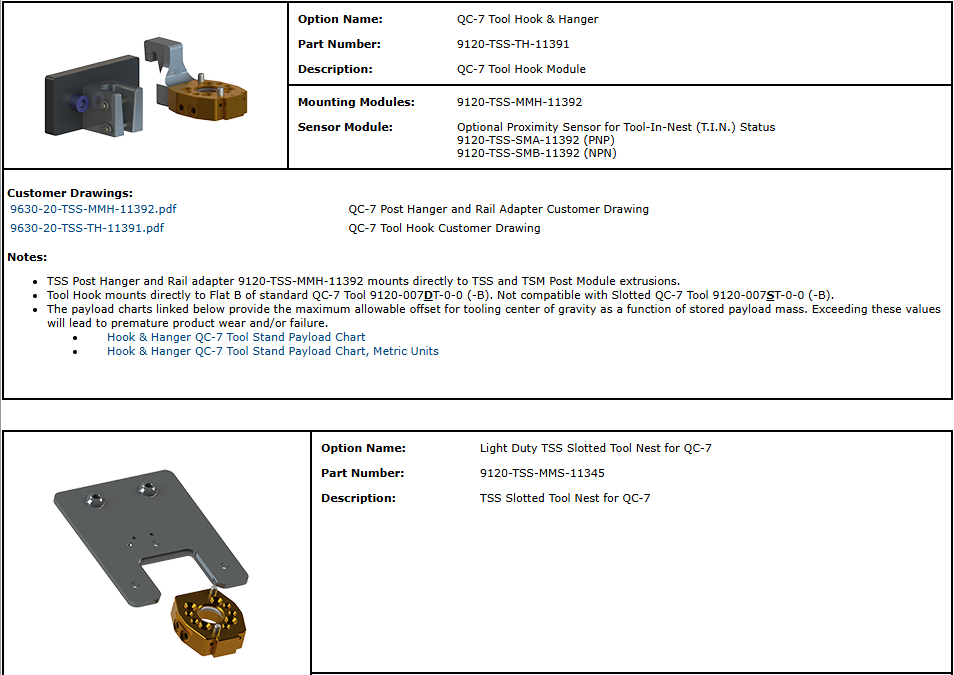

Optional tool stand hook for convenient storage during tool change.
Integrated pneumatic pass-through for reliable supply to downstream tooling.
No-Touch Locking™ overcomes 0.06 inch (1.5 mm) pickup gaps for easy robot teaching.
Configurable pneumatic ports in QC Tool for radial or axial pass-through.
Available with Slotted Tool for light-duty, economical tool storage.
Supplied with lock/unlock air fittings for 4mm (5/32") tubing.
