AEMC 6418 Ground Resistance Tester

Category：

▶ AEMC

keyWord：

Describe:

AEMC 6418

Description

http://www.jinstartech.com/

General Attributes:

AEMC 6418 very good price

Ground Resistance Tester Model 6418 (Clamp-on, Alarm, Memory, Oblong Jaws)

Ground Resistance Tester Model 6418 (Clamp-on, Alarm, Memory, Oblong Jaws)
Ground Integrity Measurement
Large multi-function bright yellow organic LED display (OLED) 48 x 39mm
Clamping diameter accommodates both cable and bus bar
Storage of measurements (Ω and/or A, with time-stamping)
Up to 300 measurements stored
View stored measurements on the OLED display
Auto Power OFF function
Auto Hold
Alarm function with an adjustable set point and buzzer for quick field checks for amps and ohms

Description

Display: OLED, 152 segments 48x39mm
Memory: 300 measurements
Alarm: 2 separate alarms (Ω and A)
Operating Temperature: -4° to +131°F (-20 to +55°C)
Storage Temperature: -22° to +158°F (-30 to +70°C)

Ground Resistance Tester

The Ground Resistance Tester Model 6418 measures ground rod, busbar, and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test.

The Model 6418 simply clamps around the grounding electrode or conductor and measures the resistance to the ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

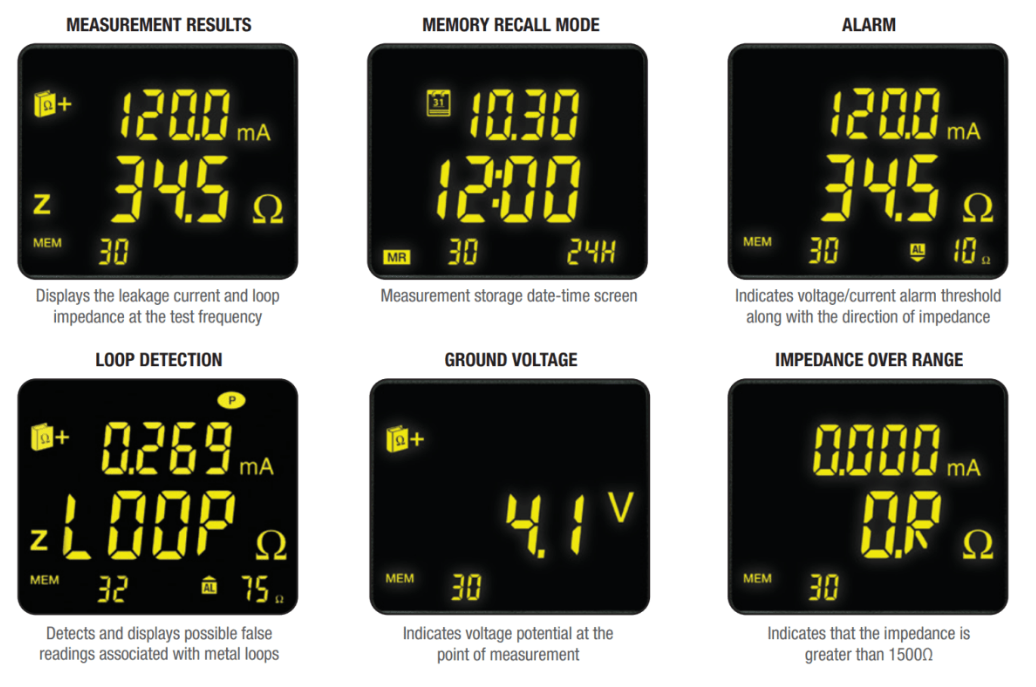

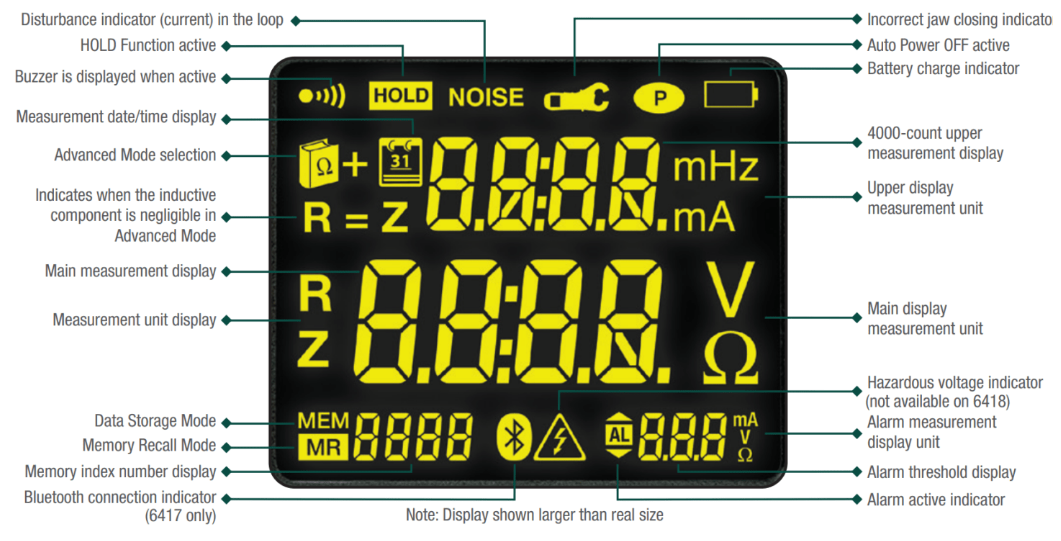

Functional Displays

Manufacturer Specs

AEMC 6418 Specifications
LOOP OHMMETER
Measurement ranges	0.010 to 0.099 Ω	0.10 to 0.99 Ω	1 to 49.9 Ω	50 to 149 Ω	150 to 245 Ω	250 to 440 Ω	450 to 640 Ω	650 to 1,200 Ω
Resolution	1 mΩ	10 mΩ	100 mΩ	1 Ω	5 Ω	10 Ω	10 Ω	50 Ω
Accuracy	± (1.5 %R* + 0.01 Ω)	± (1.5 %R + 2 r)	± (1.5 %R + 2 r)	± (2.5 %R + 2 r)	± (5 %R + 2 r)	± (10 %R + 2 r)	± (15 %R + 2 r)	± (20 %R + 2 r)
No-load voltage	≤ 4.5 mV to 2,083 Hz
AMMETER
Measurement ranges	0.5 to 9.995 mA	10.00 to 99.90 mA	100.0 to 299.0 mA	0.300 to 2.990 A	3.00 to 20.00 A
Resolution	50 µA	100 µA	1 mA	10 mA	100 mA
Accuracy	± (2 %R + 200 µA)	± (2 %R + r)	± (2 %R + r	± (2 %R + r)	± (2 %R + r)
SETUP
Alarms	Configurable for Z and I
Buzze	Active
HOLD	Manual or automatic PRE-Hold
Automatic power-off	Active / Inactive
Technical Specifications
Display	OLED 152 segments - Active area 48 x 39 mm
Storage	300 time/date-stamped measurements
Power supply	4 x 1.5 V LR6 AA alkaline batteries or 4 NiMH batteries
Battery life	2,400 x 30 s measurements
Calibration	Automatic at start-up
IEC 61010	100 V CAT IV, 150 V CAT III
Ingress protection	IP 40
Dimensions	300 x 106 x 56 mm
Weight	1.2 kg approx. including batteries
* R = Reading , r = resolution

Tech Specs

Ground Testers/Ground Clamp Meters Template
Maximum Ground Resistance	1200 K Ohms
Minimum Ground Resistance	0.010 Ohms
Resolution	50 Ohms
Maximum Current Range	20.00 A
CAT Rating	IV
Alarms	Yes
Test Equipment General Attributes
IP Rating	IP40
Product Weight	2.6 LBS
Product Height	2.2 IN
Product Length	11.8 IN
Product Width	4.2 IN
Shipping Weight	9.00 LBS
Battery Type	NimH, Other
Power Supply Voltage	Battery Powered
Country of Origin	France
