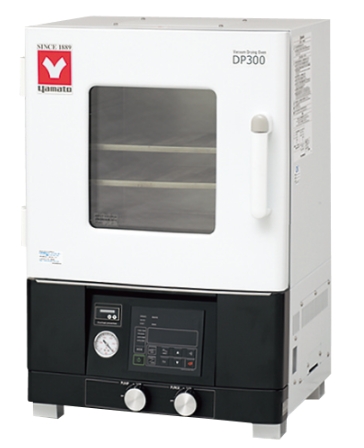

Yamato Vacuum Drying Oven (ADP301) very good price

Product Summary

Compact type vacuum oven for laboratory

Features of Vacuum Drying Oven (ADP301)

New controller improves temperature control accuracy

By installing VS6 type controller, it has improved from ± 1.5 ℃ to ± 1 ℃ as compared with the previous model (at 240 ℃ as JTMK05).

Enhanced safety functions

Equipped with safety functions such as self-diagnosis function and over-elevation prevention. In addition, it is now possible to select after returning from a power failure (standby or pre-power failure state).

Structure redesign

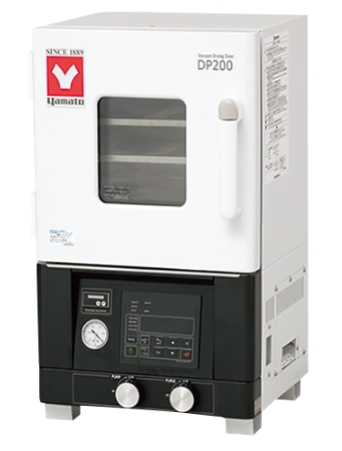

By changing the shelf board installation structure from the stacking type of the previous model ADP200 / 300 to the shelf receiving type (interior integrated structure), it has become possible to smoothly put in and take out.

Usage purpose

Heat treatment of metals that easily oxidize at high temperatures / Degassing and defoaming of liquids / Defoaming and drying of paints and adhesives / Moisture drying of adsorbents such as complex structures and activated carbon

Specifications

Item Code	212145
Model	ADP301
Method	Vacuum drying by decompressed chamber direct heating
Operating temperature range	40 to 240℃
Operating pressure range	101 to 0.1kPa（760 to 1 Torr）
Temp. control accuracy	± 1 ℃ (at240 ℃ JTM K05)
Max. temp. reaching time	Approx. 100min.
Interior Material	Stainless steel
Temp. control method	PlD control by microprocessor
Sensor	K-thermocouple
Temp. setting method	Digital setting / ON / OFF control
Temp. display method	Digital setting / display (resolution: 1 ° C)
Timer	1 minute to 99 hours 59 minutes to 999.5 hours, digital display (with timer weight function, ON / OFF possible)
Heat insulating material	Rock wool
Observation window	Tempered glass 12mm thick and polycarbonate resin protective plate
Vacuum gauge	Bourdon tube scale range 0-0.1MPa
Safety device	Self-diagnosis function (heater disconnection, sensor disconnection, SSR short circuit, automatic overheating prevention function), overcurrent leakage breaker, overheating prevention device
Shelf loading	Approx. 15kg / pcs
Shelf rest step number	3 steps
Shelf rest pitch	71mm
Vacuum port	O.D.18mm
Accessories	Shelf plate (Aluminum perforated metal) 3 pcs.
Internal dimensions（W×D×H mm）	300×300×300mm
External dimensions（W×D×H mm）	500×463×669mm
Remarks(dimensions)	27L
Power Source	Single phase AC100V 11A
Weight	55kg
