General Attributes:

Hans-Schmidt Tension Meter Q very good price

Made in Germany

9 Tension ranges available
from 2 - 10 cN up to 50 - 1000 cN

Stationary mechanical tension meter for measuring tensions of fibres, threads and thin wires

Measuring device with large, easy to read scale

Movement with magnetic damping for easy reading when tensions fluctuate

Special Features

The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment

Easy online mounting with screws (M6), sidewise or back side

Movement with magnetic damping

Tension meter Q with large, easy to read scale Ø 54 mm

Note: Series Q do not include a filament guide and material thickness compensator

Standard Features

Everything in operator’s view:
– the guide rollers
– the measured material
– the readings

Ball-bearing mounted, V-grooved guide rollers

Each instrument is individually calibrated for highest accuracy

Tension meter with rugged shell cast aluminium housing

Certificate of Compliance with the order 2.1 according EN 10204 is include

Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

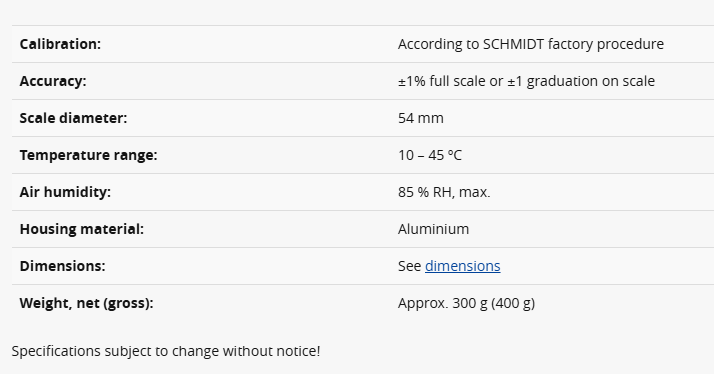

Specifications
