General Attributes:

Young 86106 very good price

Description

The YOUNG Model 86106 Ultrasonic Anemometer measures horizontal wind speed and direction.  This lightweight and compact sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame.  Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range.  The sensor is preconfigured to output NMEA serial data (RS-485, 4800 baud) although RS-232 and a variety of output  formats are also available.  Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important.*  The sensor mounts on a standard 1-inch IPS pipe.  A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance.  Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).

Not all outputs available simultaneously.

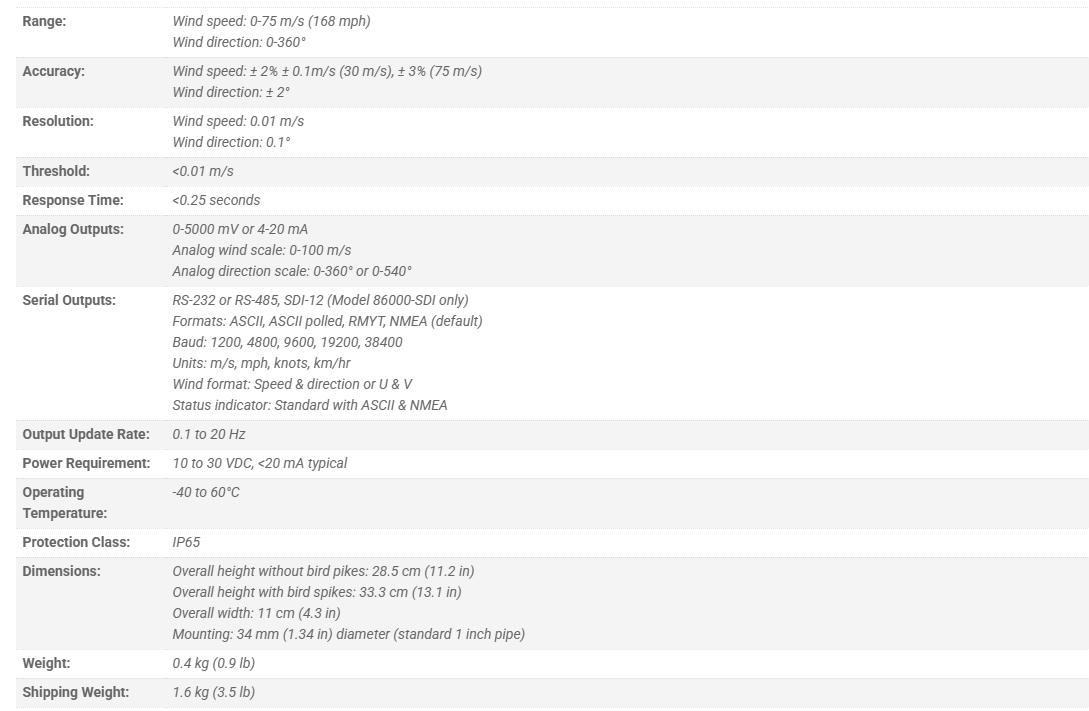

Specification
